輕觸開關又叫按鍵開關，使用時以滿足操作力的條件向開關操作方向施壓開關功能閉合接通，當撤銷壓力時開關即斷開，其內部結構是靠金屬彈片受力變化來實現通斷的。

輕觸開關由：嵌件、基座、彈片、按鈕、蓋板組成其中防水類輕觸開關在彈片上加一層聚酰亞胺薄膜，輕觸開關有接觸電阻荷小、精確的操作力誤差、規格多樣化等方面的優勢。

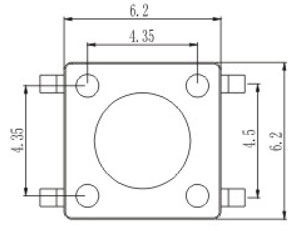

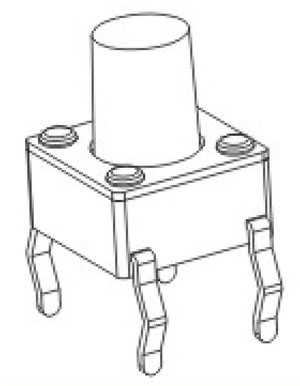

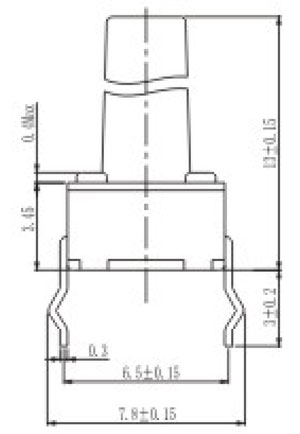

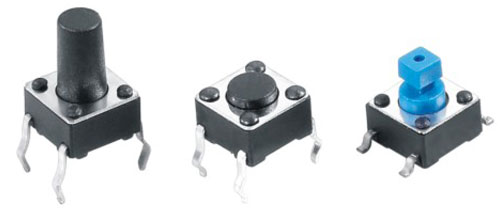

6.2*6.2MM帶防靜電腳輕觸開關RTS(M)(A)(T)(G)-6

• Rating：12VDC 50mA

• Travel：0.3mm

• Life：100,000 cycles~1,000,000 cycles

• ontact Resistance：100mΩ MAX Initial

• Insulation Resistance：100mΩ min. 100VDC

• Dielectric Strength：250VAC(50/60Hz)FOR 1MIN

• Operating Force：2=180gf 3=260gf

• Operating Temperature：-20℃ ~70℃

Part Number	Rating	Contact Resistance	Insulation Resistance	Dielectric Strength	Operating Force	Travel	Life	Operating Temperature	PDF下載
RTS-6	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	2=180gf 3=260gf	0.3mm	100,000 cycles~1,000,000 cycles	-20℃ ~70℃	暫無
RTSA-6	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	2=180gf 3=260gf	0.3mm	100,000 cycles~1,000,000 cycles	-20℃ ~70℃	暫無
RTSA-64	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	2=180gf 3=260gf	0.3mm	100,000 cycles~1,000,000 cycles	-20℃ ~70℃	暫無
RTSAL-6	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	2=180gf 3=260gf	0.3mm	100,000 cycles~1,000,000 cycles	-20℃ ~70℃	暫無
RTSAM-6	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	2=180gf 3=260gf	0.3mm	100,000 cycles~1,000,000 cycles	-20℃ ~70℃	暫無
RTSM-6	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	2=180gf 3=260gf	0.3mm	100,000 cycles~1,000,000 cycles	-20℃ ~70℃	暫無
RTSM-64	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	2=180gf 3=260gf	0.3mm	100,000 cycles~1,000,000 cycles	-20℃ ~70℃	暫無
RTSTL-6	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	2=180gf 3=260gf	0.3mm	100,000 cycles~1,000,000 cycles	-20℃ ~70℃	暫無
RTST-6	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	2=180gf 3=260gf	0.3mm	100,000 cycles~1,000,000 cycles	-20℃ ~70℃	暫無
